2ACm Centrifugal multistage cast iron pump

Application

  • Transfer of clear water or other liquids chemically and physically comparable to water
  • Suitable for industrial use and water supply, fire system, garden irrigation, long distance water transfer, air conditioning system, circulation and overpressure for hot and cold water, etc ...

Pump

  • Special anti-rust treatment (cataphoresis) for the cast iron pump body and the lantern
  • AISI 304 stainless steel shaft
  • Maximum liquid temperature: +40°C
  • Maximum suction height: 8 m

Motor

  • Integrated thermal protection for single-phase motors
  • Insulation class: F
  • Protection class: IPX4
  • Maximum ambient temperature: +40°C
  • IE2 motor (three-phase, motor> 0.75 kW)

Identification codes

2
A
C
m
110
(H)
high pressure
Power (x10 W)
Single-phase motor
centrifugal pump
LEO designation
number of impellers

Technical data

Q (m³/h) 0 1.2 1.8 2.4 3 3.6 4.2 4.8 5.4 6 6.6 7.2 8.4 9.6 10.8 12 15
Model Price excl. VAT kW Q (l/min) 0 20 30 40 50 60 70 80 90 100 110 120 140 160 180 200 250
2ACm75 227.00 € 0.75 H (m) 45 42.5 40 37 33.5 28.5 23 15
2AC75 227.00 € 0.75 45 42.5 40 37 33.5 28.5 23 15
2ACm110 344.00 € 1.1 47 46 45 44 43 41.5 40 38 35.5 33 30.5 28 22
2AC110 344.00 € 1.1 47 46 45 44 43 41.5 40 38 35.5 33 30.5 28 22
2ACm150 392.00 € 1.5 57.5 55.5 54.5 53.5 52 50.5 49 47 44.5 41.5 38.5 35 28 20
2AC150 392.00 € 1.5 57.5 55.5 54.5 53.5 52 50.5 49 47 44.5 41.5 38.5 35 28 20
2AC220 425.00 € 2.2 65 63 62 61 59.5 58 56 54 51.5 49 46 43 36 28.5 20.5
2AC300H 682.00 € 3 67 66 65 64 63 62 61 59.5 59 55.5 52 49 45 33
2AC400H 757.00 € 4 79.5 78.5 77.5 76.5 75.5 74.5 73.5 72 71 67.5 64.5 61 57 45.5

Hydraulic performance

Dimensions

Models DN1 DN2 L L2 H H1 W W1
2ACm75 1¼ 1 336 72 231 100 181 145
2AC75 1¼ 1 336 72 231 100 181 145
2ACm110 1½ 1 379 71 225 93 200 162
2AC110 1½ 1 379 71 225 93 200 162
2ACm150 1½ 1 400 80 262 112 225 185
2AC150 1½ 1 400 80 262 112 225 185
2AC220 1½ 1 400 80 262 112 225 185
2AC300H 1½ 1¼ 480 63 311 132 281 234
2AC400H 1½ 1¼ 480 63 311 132 281 234
DN1 (")
DN2 (")
L (mm)
L2 (mm)
H (mm)
H1 (mm)
W (mm)
W1 (mm)

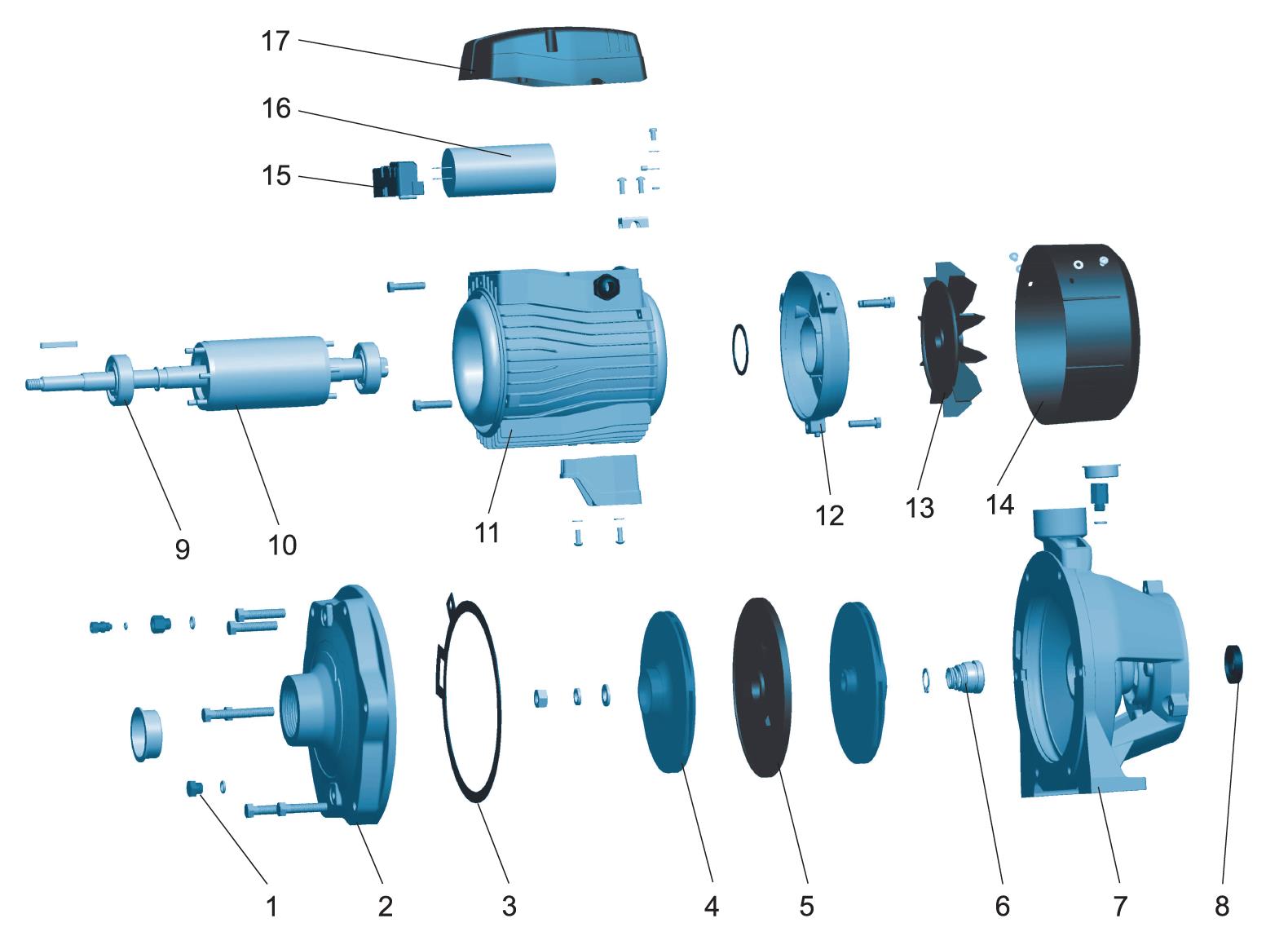

Exploded view

No. Type Materials Buy
1 Drain plug brass HPb59-1
2 Pump body cast iron HT200
3 O-ring nitrile rubber (NBR)
4 Impeller stainless steel AISI 304 / cast iron HT200
5 Diffuser cast iron HT200
6 Mechanical seal carbon / ceramic
7 Lantern cast iron HT200
8 Oil seal
9 Bearing
10 Rotor
11 Stator
12 Rear cover cast aluminum ZL102
13 Fan polypropylene
14 Fan cover polypropylene
15 Terminal board polycarbonate
16 Capacitor
17 Electric box cover PA6 resin
Drain plug for 2ACm
